WPBD

Declaration of conformity

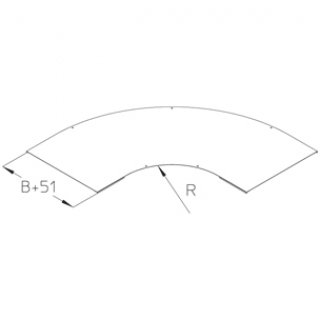

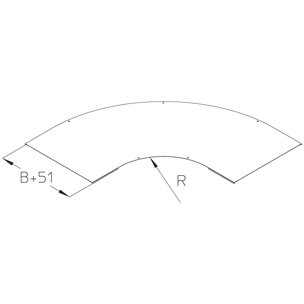

Wide-span bend cover

Cover for wide-span bend.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name B[mm] R[mm] G[kg]
WPBD 20S
200
450
2,09
− +
WPBD 30S
300
450
4,07
− +
WPBD 40S
400
450
5,5
− +
WPBD 50S
500
450
8,79
− +
WPBD 60S
600
450
10,86
− +

Hot-dip galvanized, according to BS 729 (EN ISO 1461)

Name B[mm] R[mm] G[kg]
WPBD 20F
200
450
2,24
− +
WPBD 30F
300
450
4,36
− +
WPBD 40F
400
450
5,88
− +
WPBD 50F
500
450
9,4
− +
WPBD 60F
600
450
11,62
− +

Stainless steel, according to ASTM 304 / BS 304 S 3

Name B[mm] R[mm] G[kg]
WPBD 20E
200
450
2,09
− +
WPBD 30E
300
450
4,07
− +
WPBD 40E
400
450
5,5
− +
WPBD 50E
500
450
8,79
− +
WPBD 60E
600
450
10,86
− +
