RR 85

Declaration of conformity

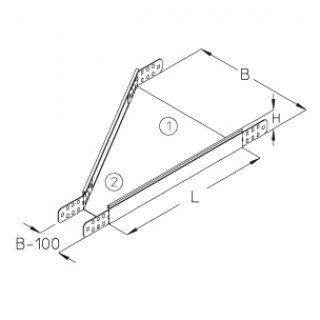

Cable tray reducer, height=85 mm

Cable tray reducer with integrated connectors

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Name H[mm] B[mm] L[mm] G[kg]
RR 85-20S
85
200
500
2,17
− +
RR 85-30S
85
300
500
2,57
− +
RR 85-40S
85
400
500
2,97
− +
RR 85-50S
85
500
500
3,37
− +
RR 85-60S
85
600
500
3,77
− +

Hot-dip galvanized, according to BS 729 (EN ISO 1461)

Name H[mm] B[mm] L[mm] G[kg]
RR 85-20F
85
200
500
2,43
− +
RR 85-30F
85
300
500
2,88
− +
RR 85-40F
85
400
500
3,32
− +
RR 85-50F
85
500
500
3,77
− +
RR 85-60F
85
600
500
4,22
− +
