LAB 60

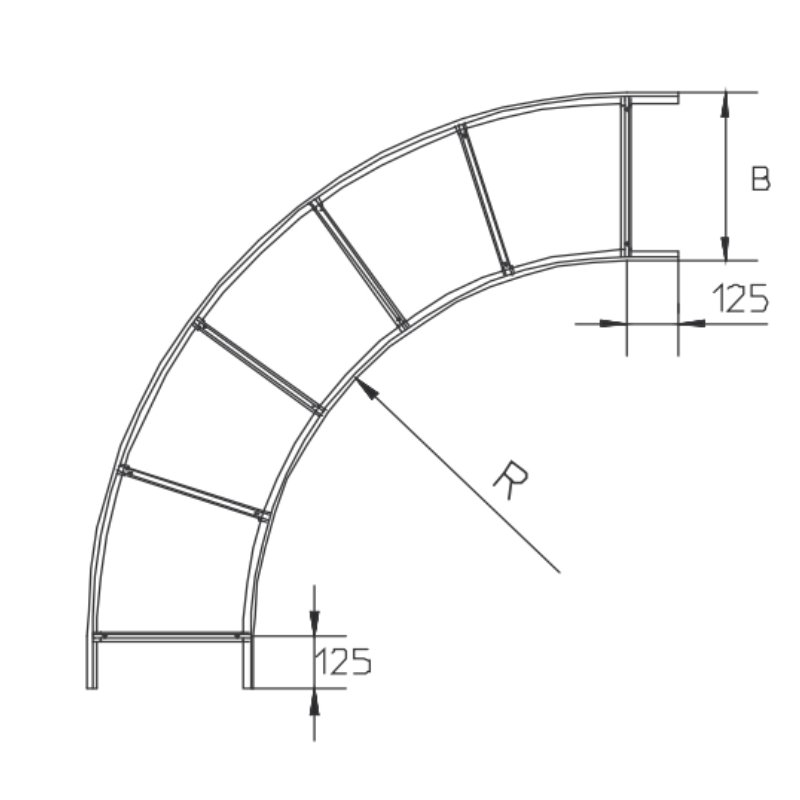

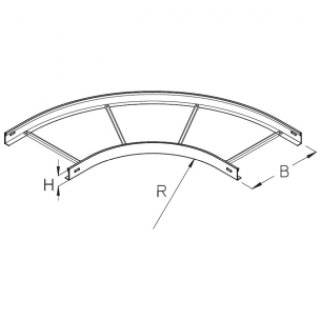

Cable ladder outside bend, height=60 mm

Cable ladder outside bend 90º for horizontal change of direction

Name	B[mm]	R[mm]	G[kg]
LAB 60-10S	100	600	2,74	− +
LAB 60-20S	200	700	3,53	− +
LAB 60-30S	300	800	4,41	− +
LAB 60-40S	400	900	5,38	− +
LAB 60-50S	500	1000	6,43	− +
LAB 60-60S	600	1100	7,57	− +

Name	B[mm]	R[mm]	G[kg]
LAB 60-10F	100	600	3,07	− +
LAB 60-20F	200	700	3,95	− +
LAB 60-30F	300	800	4,94	− +
LAB 60-40F	400	900	6,02	− +
LAB 60-50F	500	1000	7,2	− +
LAB 60-60F	600	1100	8,48	− +

Name	B[mm]	R[mm]	G[kg]
LAB 60-10E	100	600	2,74	− +
LAB 60-20E	200	700	3,53	− +
LAB 60-30E	300	800	4,41	− +
LAB 60-40E	400	900	5,38	− +
LAB 60-50E	500	1000	6,43	− +
LAB 60-60E	600	1100	7,57	− +

Cable ladder coupler, height=60 mm

Cable ladder coupler, height=60 mm

Cable ladder coupler, height=60 mm

Fixing set
